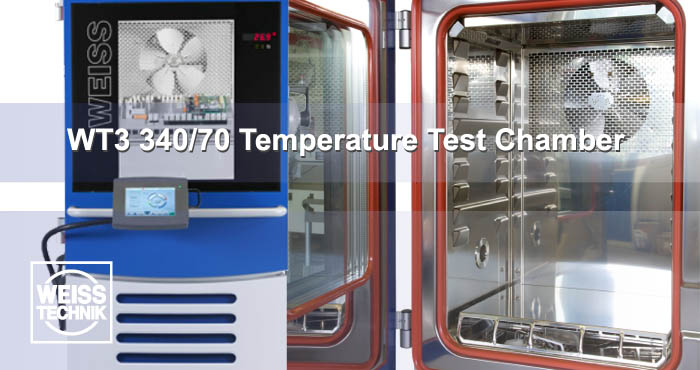

Temperature test chamber WT3-340/70

Type: WT3-340/70
Test space contents (Litre): 335

Test space dimensions
Height approx. (mm): 750
Width approx. (mm): 580
Depth approx. (mm): 765

Outside dimensions
Height approx. (mm): 1805
Width approx. (mm): 780
Depth approx. (mm): 1700

Performance for temperature tests
Maximum temperature (°C): +180
Minimum temperature (°C): -72

Temperature changing rate cooling (K/min): 3.0
Temperature changing rate heating (K/min): 3.0
Temperature changing rate linear (K/min): 1.0

Humidity range (% r.h.): 10 to 98
Maximum heat compesation (W): 400
Humidity constancy in time (% r.h.): ±1 to ±3

Temperature constancy in time (K): ±0.1 to ±0.3
Temperature homogeneity in space (K): ±0.5 to ±1.0
Calibration values (°C): +23°C / 50% r.h. and +95°C/ 50 % r.h.

Condenser: air-cooled
Chamber weight in kg (approx.): 500

For further information, please, contact us!
